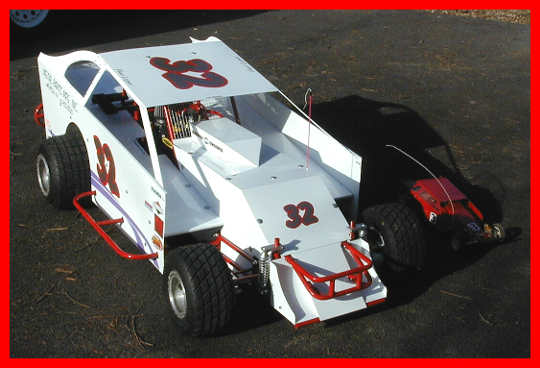

1/2 Scale Radio Controlled Dirt Modified

Click images to enlarge


Actual Scale: .43:1

Overall Dimensions: 6'3" long x 39" wide x 25" high

Body: 6061-T6 Aluminum .040 Thick

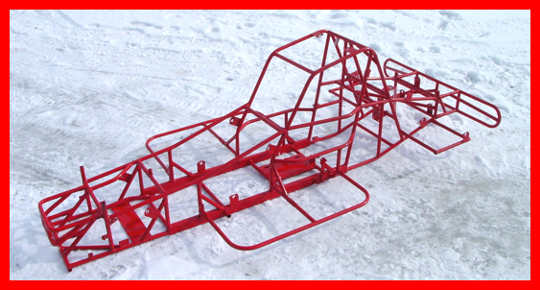

Chassis: .625 o.d. x .065 wall mild steel tubing

-This Frame is built the same as a full sized Dirt Modified Chassis

Suspension: Hand made "coil over" type springs, 4 bar front and rear, totally adjustable

Brakes: Servo operated Hydraulic Disc, rear only

Weight: 195 lbs.

Engine: Briggs & Stratton Raptor 5HP racing go-kart motor

Tires: Front - Burris 11.0 x 5.5 x 5.0

Rear - Burris 12.0 x 8.0 x 6.0

Wheels: Van-K

Safety: Primary - Operated kill switch for engine

Secondary - Relay operated kill switch, shuts off engine if power is lost

Designed and built by:

Metal Parts Manufacturing, Inc.

Remsen, NY
